Automatic double-station feeding forming machine

Basic Info

Applicable IndustryManufacturing Plant, Machinery Repair Shops

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Viet Nam, Philippines, Thailand, Malaysia

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Viet Nam

StatusNew

Product CategoryOther

Processing TypePulp Molding Machine

Place Of OriginChina

Warranty Period1 Year

Productivity60 Pcs/Min

Mechanical Test ReportProvided

Video Factory InspectionProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsPlc, Motor

Additional Info

Packagingwooden case, wooden pallet, carton, nude packing

TransportationOcean,Land,Express

Place of OriginJiangmen City, Guangdong Province, China

Supply Ability60 sets per month

PortNansha Port,Shekou Port

Product Description



Automatic Double-Station Feeding Forming Machine

Definition: An industrial-grade pulp molding system designed for high-volume production of eco-friendly packaging solutions. This dual-station equipment specializes in manufacturing precision Molded Pulp Products through automated forming processes.

Key Features:

  1. Dual-Station Operation - Independent forming stations allow simultaneous production of different product configurations
  2. Precision Control System - Programmable Logic Controller (PLC) with intuitive touchscreen interface
  3. Advanced Forming Technology - Vacuum adsorption with adjustable parameters for optimal thickness control
  4. Automated Material Handling - Servo-driven screw rail system ensures precise product transfer
  5. Flexible Production - Adjustable speed and parameters accommodate various product specifications

Applications:

  • Electronics packaging components (mobile device trays, laptop holders)
  • Food and beverage packaging (wine shippers, egg cartons)
  • Industrial protective packaging (automotive parts, medical equipment)
  • Sustainable disposable tableware (plates, bowls, food containers)

Installation Requirements:

  1. Foundation - Level concrete base with vibration damping
  2. Utilities - 380V/50Hz power supply and compressed air system (0.6-0.8MPa)
  3. Space - Adequate clearance for operation and maintenance access
  4. Commissioning - Initial calibration and test runs required
  5. Safety - Includes emergency stop functions and protective guards

Operational Advantages:

  • High production efficiency with dual-station capability
  • Consistent product quality through automated control
  • Reduced labor requirements via automated processes
  • Energy-efficient operation with servo technology
  • Quick changeover between different product designs

This equipment represents a complete solution for manufacturers seeking to produce high-quality molded pulp packaging with efficiency and precision. Its advanced automation features make it particularly suitable for medium to large-scale production environments.

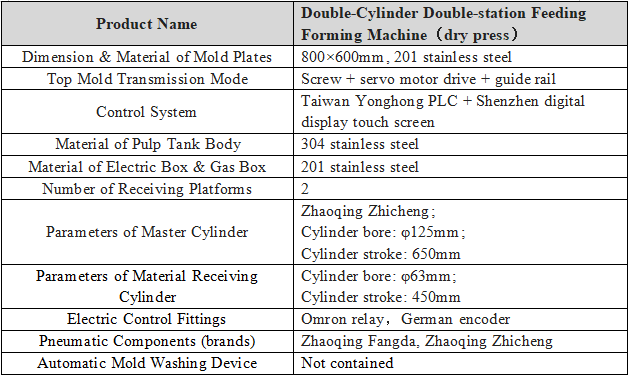

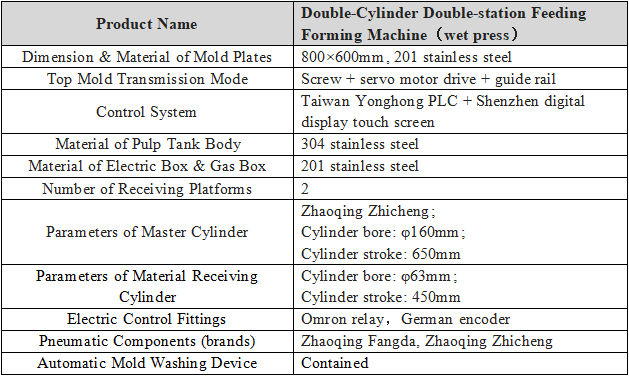

Parameter table of double-cylinder double-station feeding forming machine (wet press)Parameter table of double-cylinder double-station feeding forming machine (dry press)

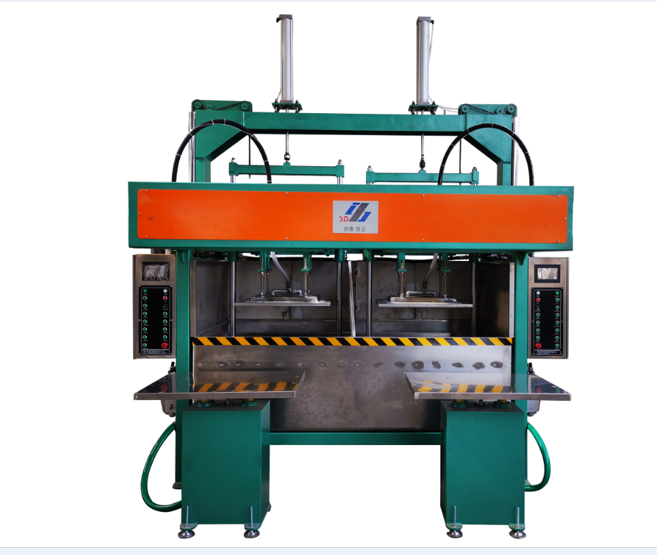

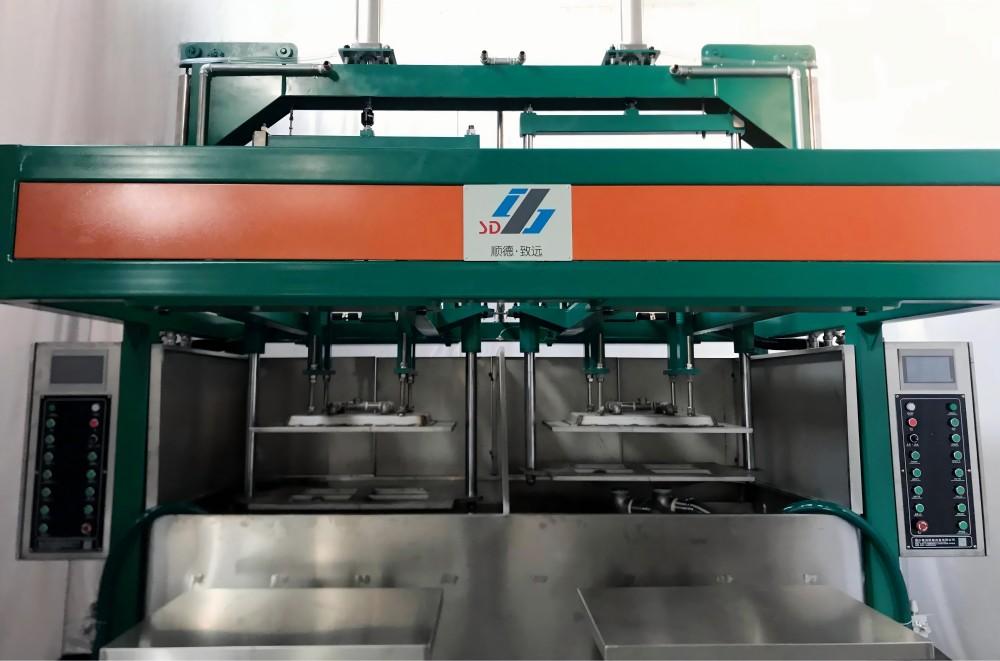

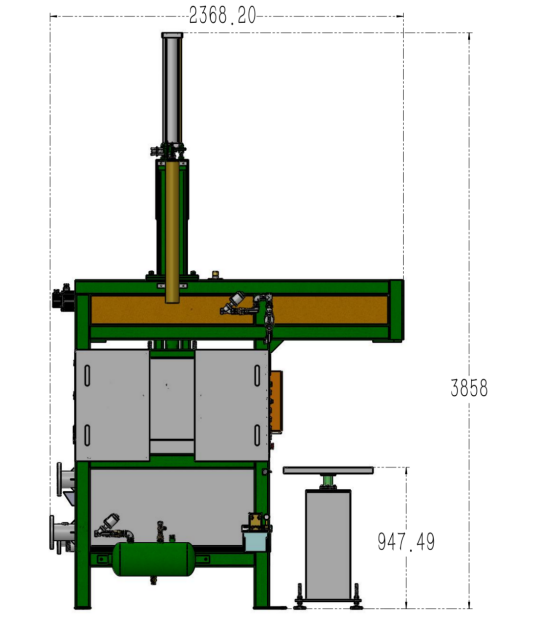

Double-cylinder double-station feeding forming machine(front)Double-cylinder double-station feeding forming machine(side)

Product Categories : Pulp Molding Equipment > Molded Pulp Forming Machine

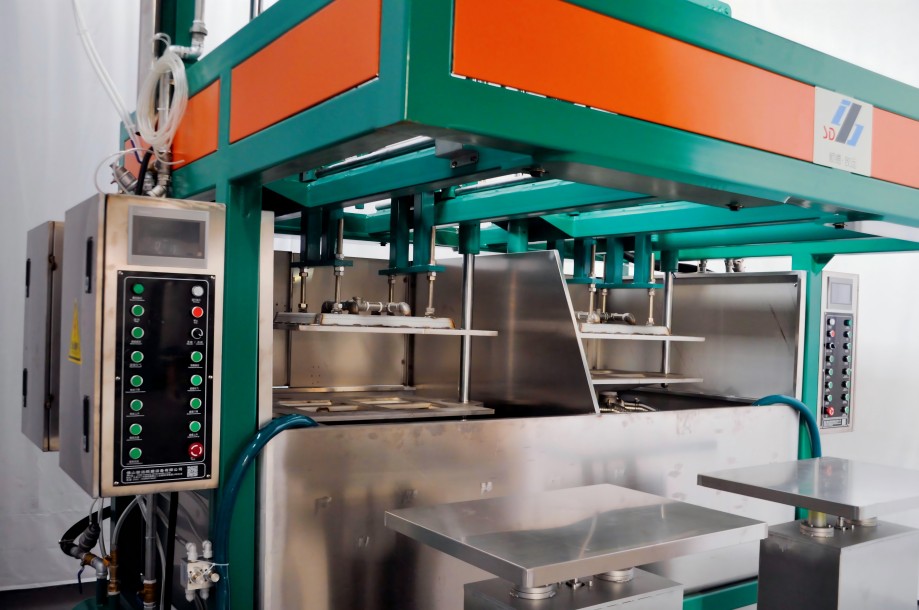

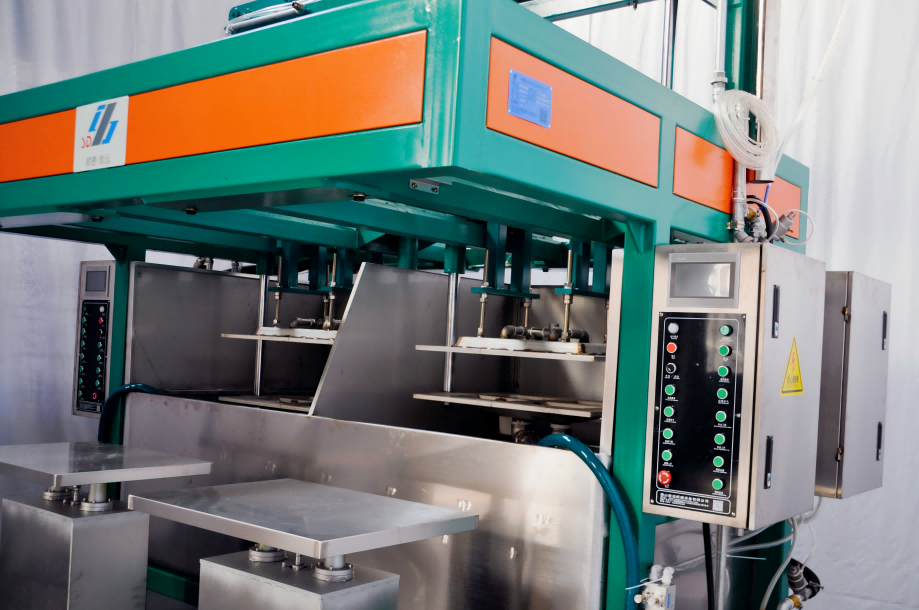

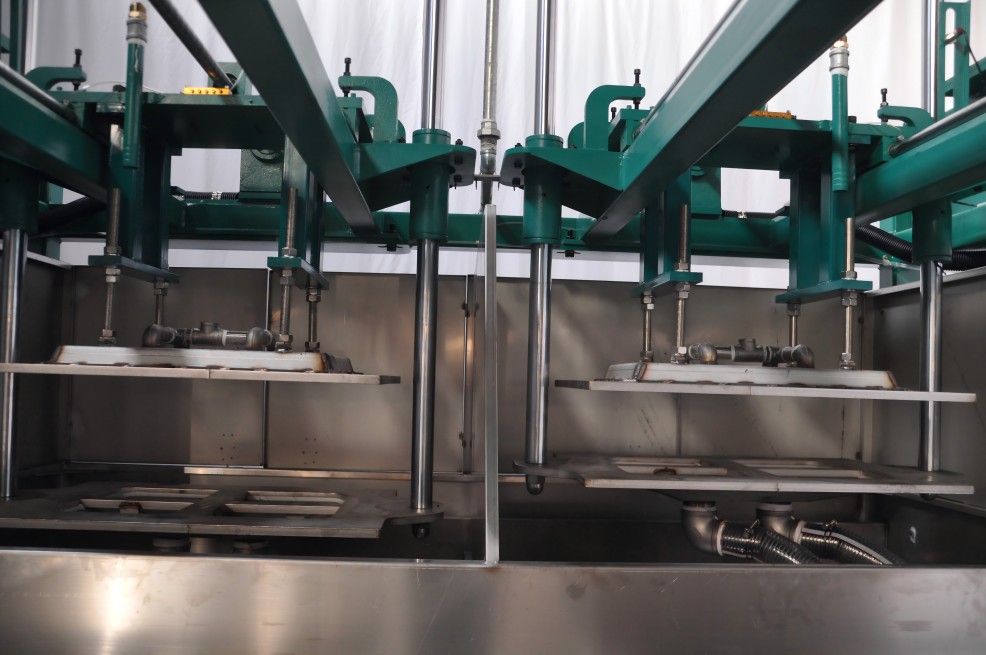

Product Images
  • Automatic double-station feeding forming machine
  • Automatic double-station feeding forming machine
  • Automatic double-station feeding forming machine
  • Automatic double-station feeding forming machine
  • Automatic double-station feeding forming machine
